1. Application and properties

Suitable for rods, shafts, pins, rotating joints, etc. that rotate or pivot with angular motion. It is double-acting rotary sealing ring that can withstand pressure from both sides or alternating pressure. It is used in industrial fields such as construction machinery, manipulators, and automobiles.

Low friction, no viscous phenomenon, smooth start-up, and even at low speeds, there is no crawling.

The groove is simple, and the cross-sectional size is small.

Good wear resistance, stable dimensions and highly compatible with hydraulic media.

High temperatures resistance and good anti-extrusion properties.

It can withstand a certain reciprocating motion while rotating.

2. Standard material

Sealing ring: filled PTFE

O-Ring: NBR / FKM

3. Working conditions

Working conditions

Diameter

Range

Pressure

Range

Temperature

Range°C

Speed

Medium

8～2000mm

0～30

-30～160℃

2m/s

Hydraulic oil,

flame retardant liquid,

water and others

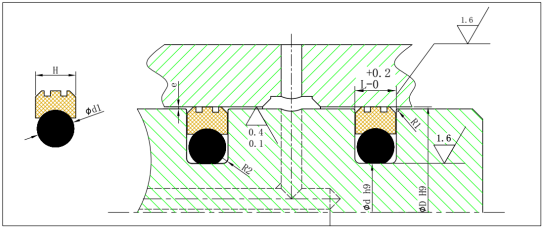

4. Related Dimensions

R1=0.1～0.2;R2=0.3～0.5; The specific values are selected according to the section size of the seal. The remaining values are listed in the table below:

Bore Diameter		Groove	Groove	Radial		O-Ring
D		Diameter	Width	Clearance e max.		Cross-Section
Standard	Available	d	L	16	25	d1
Range	range	d	L	MPa	MPa	d1
8～39.9	8～135	D-4.9	2.2	0.15	0.1	1.78
40～79.9	14～250	D-7.5	3.2	0.2	0.15	2.62
80～132.9	22～460	D-11.0	4.2	0.25	0.2	3.53
133～329.9	40～675	D-15.5	6.3	0.3	0.25	5.33
330～669.9	133～690	D-21.0	8.1	0.3	0.25	6.99
670～999.9	670～999.9	D-28.0	9.5	0.45	0.3	8.4

5. Marking method

Mark it with the dimension of installation groove as below：

GNS “Nominal diameter dimension D” × “Groove Diameter d” × “Groove Width L”

For example: GNS100×89×4.2 means Groove dimensions: φ100×φ89×4.2

6. Installation Dimensions

Bore Dia.	Groove	Groove Width	Part No.	Bore Dia.	Groove	Groove Width	Part No.
Bore Dia.	Dia.	Groove Width	Part No.	Bore Dia.	Dia.	Groove Width	Part No.
D	d	L		D	d	L
8	3.1	2.2	GNS0080	105	94	4.2	GNS1050
10	5.1	2.2	GNS0100	110	99	4.2	GNS1100
12	7.1	2.2	GNS0120	115	104	4.2	GNS1150
14	9.1	2.2	GNS0140	120	109	4.2	GNS1200
15	10.1	2.2	GNS0150	125	114	4.2	GNS1250
16	11.1	2.2	GNS0160	130	119	4.2	GNS1300
17	12. 1	2.2	GNS0170	135	119.5	6.3	GNS1350
18	13. 1	2.2	GNS0180	140	124.5	6.3	GNS1400
20	15.1	2.2	GNS0200	150	134.5	6.3	GNS1500
22	17.1	2.2	GNS0220	160	144.5	6.3	GNS1600
25	20.1	2.2	GNS0250	170	154.5	6.3	GNS1700
28	23.1	2.2	GNS0280	175	159.5	6.3	GNS1750
30	25.1	2.2	GNS0300	180	164.5	6.3	GNS1800
32	27.1	2.2	GNS0320	190	174.5	6.3	GNS1900
35	30.I	2.2	GNS0350	200	184.5	6.3	GNS2000
36	31.1	2.2	GNS0360	210	194.5	6.3	GNS2100
38	33.1	2.2	GNS0380	220	204.5	6.3	GNS2200
40	32.5	3.2	GNS0400	230	214.5	6.3	GNS2300
42	34.5	3.2	GNS0d20	240	224.5	6.3	GNS2400
45	37.5	3.2	GNS0d50	250	234.5	6.3	GNS2500
48	40.5	3.2	GNS0480	280	264.5	6.3	GNS2800
50	42.5	3.2	GNS0500	300	284.5	6.3	GNS3000
52	44.5	3.2	GNS0520	310	294.5	6.3	GNS3100
53	45.5	3.2	GNS0530	320	304.5	6.3	GNS3200
55	47.5	3.2	GNS0550	350	329	8.1	GNS3500
60	52.5	3.2	GNS0600	360	339	8.1	GNS3600
63	55.5	3.2	GNS0630	400	379	8.1	GNS4000
65	57.5	3.2	GNS0650	420	399	8.1	GNS4200
70	62.5	3.2	GNS0700	450	429	8.1	GNS4500
75	67.5	3.2	GNS0750	480	459	8.1	GNS4800
80	69	4.2	GNS0800	500	479	8.1	GNS5000
85	74	4.2	GNS0850	510	489	8.1	GNS5100
90	79	4.2	GNS0900	520	499	8.1	GNS5200
95	84	4.2	GNS0950	550	529	8.1	GNS5500
100	89	4.2	GNS1000	600	579	8.1	GNS6000
102	91	4.2	GNS1020	650	629	8.1	GNS6500
