FSXL-O
FSXL-O
Quantity:
1.Application and properties
Suitable for rotating single-acting pressure bars/shaft seals, and can also be used for reciprocating and rotating composite motion rod/shaft seals, with excellent sealing performance in high, medium and low pressure situations. Mainly used in low pressure, low speed or static sealing. The working pressure adaptation range is wide.
The friction coefficient is small, and the contact pressure with the mating surface is low. It can work with or without lubrication, and it is wear-resistant with a long service life.
The working medium of the sealing sleeve is widely adaptable, and other chemicals do not react with it except soluble alkali metal, high temperature fluorine gas and chlorine trifluoride..
Operating temperature range from -200°C to +250°C.
It can be used in special working conditions such as extremely low speed and micro-stroke,.
Suitable for aerospace, military and industrial sealing groove sizes, with small installation grooves and open grooves.
2. Standard material
Sealing ring: filled PTFE
Spring: SUS301, 302, 304, 316 or 718 Default use SUS301, please specify if there are special requirment/103A
3.Working conditions
Working conditions | ||||
Diameter Range | Pressure Range | Temperature Range°C | Speed | Medium |
2～2000mm | 0～20MPa | -200～250℃ | 0.5m/s | High and low temperature oil and water vapor and other fluids |
4. Related Dimensions

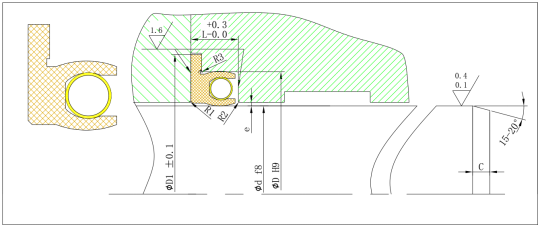

R1=0.1～0.2;R2=0.3～0.5; R3=0.3～0.5；D1,H1, Can be determined according to the specific structure installation space C=(0.5～1.0)L；The specific values are selected according to the section size of the seal. The remaining values are listed in the table below:
| Rod | Groove | Groove | Radial |
| Diameter | Width | Diameter | Clearance e |
| d | L | D | e |
| 2～10 | 2.5 | d+3.0 | 0.05 |
| 10～22 | 3.2 | d+4.0 | 0.065 |
| 22～52 | 4.7 | d+6.0 | 0.075 |
| 48～150 | 7.5 | d+10.0 | 0.09 |
| 150～1000 | 11 | d+15.0 | 0.1 |
5. Marking method
Mark it with the dimension of installation groove as below：
FSXL “Rod Diameter d” × “Groove Diameter D” × “Foot Diameter D1” × “Groove Width L” (Foot Height H1”)- “Spring material and shape”
For example: FSXL160×170×177.5×7.1(2.05)-316O meansdimensions d=160, D=170, D1=177.5, L=7.1, H1=2.05, Spring material 316, O shape
