1. Application and properties

Suitable for reciprocating oil and cylinder under harsh working conditions, mainly used in hydraulic and pneumatic devices, servo systems, chemical and food equipment. Excellent sliding performance, no stick-slip or crawling phenomenon, can compensate for large deformation of piston rod and plunger, very good compatibility with hydraulic media, effectively erase the remaining oil film adhering to the surface of the piston rod from the inside. Can remove stubborn stains, suitable for equipment working in particularly harsh environments such as mines, quarries, and cement plants.

Small groove size.

Operating temperature range from -30°C to +160°C.

Can be used for special working conditions such as extremely high speed, extremely low speed, micro-stroke, etc.

Main features:

Ⅰ. low friction coefficient, can work with or without lubrication;

Ⅱ. strong resistance to media;

Ⅲ. wear-resistant, long service life;

Ⅳ. can be used in harsh working conditions

2. Standard material

Sealing ring: filled PTFE

O-Ring: NBR / FKM

3. Working conditions

Working conditions

Diameter

Range

Temperature

Range°C

Speed

Medium

5～2000mm

-30～100(NBR),

-20～160(FKM)

5m/s

High and low temperature oil,

water vapor and other fluids

4. Related Dimensions:

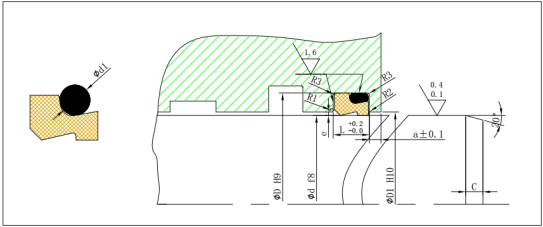

R1=0.2～0.3; R2=0.2; R3=0.3～0.5; e=0.05～0.5; C=(0.5～1.0)L; The specific values are selected according to the section size of the seal. The remaining values are listed in the table below:

Rod Diameter	Groove Diameter	Groove Width	Diameter	Step Width	O-Ring
Rod Diameter	Groove Diameter	Groove Width	Diameter	Step Width	Cross-Section
d	D	L	D1	a	d1
19.0～39.9	d+7.6	4.2	d+1.5	3	2.62
40.0～69.9	d+8.8	6.3	d+1.5	3	2.62
70.0～139.9	d+12.2	8.1	d+2.0	4	3.53
140.0～399.9	d+16.0	9.5	d+2.5	5	5.33
400.0～649.9	d+24.0	14	d+2.5	8	6.99
650.0～999.9	d+27.3	16	d+2.5	10	8.4
>1000.0	d+27.3	16	d+2.5	10	8.4

5. Marking method:

Mark it with the dimension of installation groove as below

For example: φ100GSZ100×112.2×8.1

6. Installation Dimensions

Rod Dia	Groove	Groove	Step Width	Part No.	Rod Dia	Groove	Groove	Step Width	Part No.
Rod Dia	Dia	Width	Step Width	Part No.	Rod Dia	Dia	Width	Step Width	Part No.
d	D	L	a		d	D	L	a
20	27.6	4.2	3	GSZ0200	170	186	9.5	5	GSZ1700
25	32.6	4.2	3	GSZ0250	175	191	9.5	5	GSZ1750
28	35.6	4.2	3	GSZ0280	180	196	9.5	5	GSZ1800
30	37.6	4.2	3	GSZ0300	190	206	9.5	5	GSZ1900
32	39.6	4.2	3	GSZ0320	200	216	9.5	5	GSZ2000
36	43.6	4.2	3	GSZ0360	210	226	9.5	5	GSZ2100
40	48.8	6.3	3	GSZ0400	220	236	9.5	5	GSZ2200
42	50.8	6.3	3	GSZ0420	240	256	9.5	5	GSZ2400
45	53.8	6.3	3	GSZ0450	250	266	9.5	5	GSZ2500
50	58.8	6.3	3	GSZ0500	260	276	9.5	5	GSZ2600
55	63.8	6.3	3	GSZ0550	270	286	9.5	5	GSZ2700
56	64.8	6.3	3	GSZ0560	280	296	9.5	5	GSZ2800
60	68.8	6.3	3	GSZ0600	300	316	9.5	5	GSZ3000
63	71.8	6.3	3	GSZ0630	320	336	9.5	5	GSZ3200
65	73.8	6.3	3	GSZ0650	330	346	9.5	5	GSZ3300
70	82.2	8.1	4	GSZ0700	350	366	9.5	5	GSZ3500
75	87.2	8.1	4	GSZ0750	360	376	9.5	5	GSZ3600
80	92.2	8.1	4	GSZ0800	380	396	9.5	5	GSZ3800
85	97.2	8.1	4	GSZ0850	400	424	14	8	GSZ4000
90	102.2	8.1	4	GSZ0900	440	464	14	8	GSZ4400
95	107.2	8.1	4	GSZ0950	450	474	14	8	GSZ4500
100	112.2	8.1	4	GSZ1000	480	504	14	8	GSZ4800
105	117.2	8.1	4	GSZ1050	500	524	14	8	GSZ5000
110	122.2	8.1	4	GSZ1100	560	584	14	8	GSZ5600
115	127.2	8.1	4	GSZ1150	600	624	14	8	GSZ6000
120	132.2	8.1	4	GSZ1200	650	677.3	16	10	GSZ6500
125	137.2	8.1	4	GSZ1250	680	707.3	16	10	GSZ6800
130	142.2	8.1	4	GSZ1300	700	727.3	16	10	GSZ7000
135	147.2	8.1	4	GSZ1350	770	797.3	16	10	GSZ7700
140	156	9.5	5	GSZ1400	785	812.3	16	10	GSZ7850
145	161	9.5	5	GSZ1450	800	827.3	16	10	GSZ8000
150	166	9.5	5	GSZ1500	810	837.3	16	10	GSZ8100
155	171	9.5	5	GSZ1550	900	927.3	16	10	GSZ9000
160	176	9.5	5	GSZ1600	950	977.3	16	10	GSZ9500
165	181	9.5	5	GSZ1650	1000	1027.3	16	10	GSZ10000
