Application of Spring Energized Seals in Semiconductor Precision Manufacturing

Semiconductor manufacturing features ultra-high precision, high cleanliness, strong chemical corrosion resistance, and wide temperature range operating conditions, covering core processes such as wafer photolithography, etching, thin-film deposition, wet cleaning, dispensing and packaging. Seals used in these processes must meet strict requirements including low outgassing, minimal extractables, chemical resistance and long-term sealing performance. Conventional rubber O-rings suffer from aging, particle shedding and poor chemical resistance, which frequently lead to vacuum leakage and unplanned equipment downtime. Featuring a composite structure and high-purity material properties, spring energized PTFE seals have become the critical sealing solution for high-end semiconductor equipment. Widely applied in vacuum systems and fluid control units, they are key precision components for improving chip yield and equipment reliability.

I. Core Advantages of Spring Energized Seals for Semiconductor Working Conditions

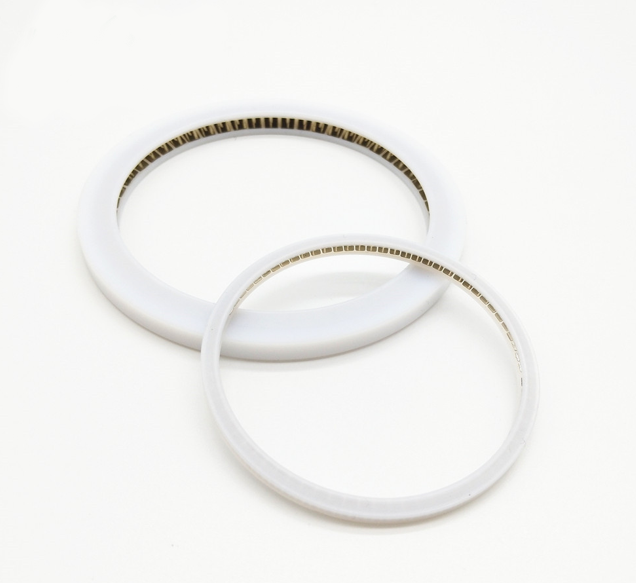

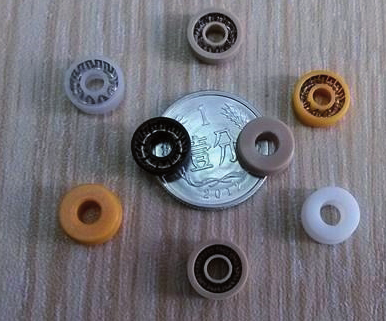

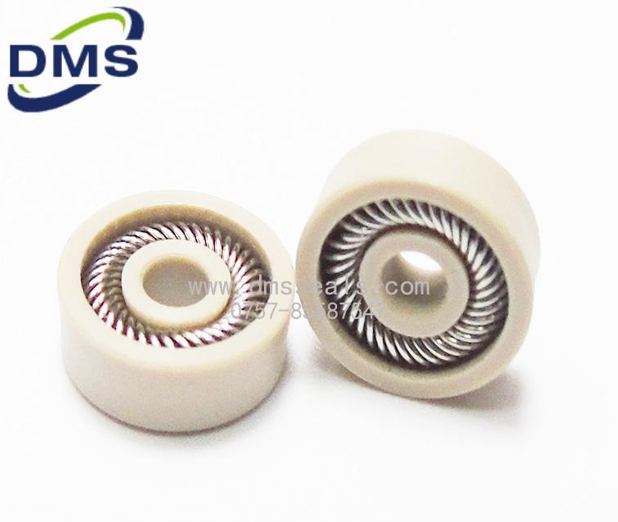

Constructed with a high-purity PTFE sealing shell and metal energizing spring without any rubber components, spring energized seals eliminate the drawbacks of traditional rubber seals and fully satisfy the cleanliness requirements of semiconductor production.

1. Ultra-low contamination. Medical-grade virgin PTFE prevents silicone leaching and particulate generation with extremely low outgassing, complying with ISO Class 1 cleanroom standards. It avoids wafer contamination by microparticles and metal ions, effectively raising production yield and reducing wafer scrap losses.
2. Outstanding chemical resistance. The seals resist plasma, acidic and alkaline process gases, organic solvents, photoresist and cleaning chemicals without swelling or hardening, suitable for all wet and dry chemical processes.
3. Automatic sealing compensation. The built-in spring compensates for equipment wear automatically. Stable sealing is maintained even under long-term high-frequency reciprocating and rotary motion, with vacuum leakage rate controlled below 1×10⁻⁹ Pa·m³/s to meet the ultra-high vacuum requirements of EUV photolithography equipment.
4. Stable performance across a wide temperature range. The seals reliably operate from -200 °C cryogenic temperature up to 260 °C high temperature, adapting to frequent temperature shifts in semiconductor processes.

II. Key Application Scenarios in the Semiconductor Industry

1. Vacuum Process Equipment

They are widely installed on gate flanges, rotary shafts and pipelines of CVD, PVD, etchers, lithography machines, vacuum chambers and wafer transfer vacuum systems. The rubber-free structure prevents aging and outgassing, sustaining stable chamber vacuum for extended periods, prolonging mean time between failures and ensuring consistent process precision.

2. Precision Dispensing & Packaging Equipment

As core sealing parts for semiconductor packaging, they fit piezoelectric jet valves and precision dispensing valves for media including UV adhesive, epoxy resin, conductive glue and solder paste. They ensure consistent dispensing accuracy to meet the strict specifications of 3D IC and other advanced packaging technologies.

3. Wet Cleaning & High-Purity Fluid Handling Equipment

The seals are used on wet cleaning tools, high-purity gas pipelines and pump shaft seals. Excellent resistance to acids, alkalis and organic solvents prevents fluid leakage and particulate contamination, maintaining ultra-high purity of transported media for rigorous wet process applications.

III. Material Selection Criteria for Semiconductor-Grade Spring Energized Seals

Materials are selected by grade to match different process cleanliness levels:

• The sealing shell primarily adopts unfilled virgin PTFE with minimal extractables and outgassing for advanced wafer fabrication. Glass-filled PTFE is an alternative for reciprocating motion to enhance anti-creep and wear resistance. Fillers such as bronze powder or graphite are strictly prohibited to avoid contamination.
• Spring material options: 316 stainless steel is selected for general clean environments to deliver superior corrosion resistance and avoid secondary contamination.
