Types and Applications of Shaft Seals

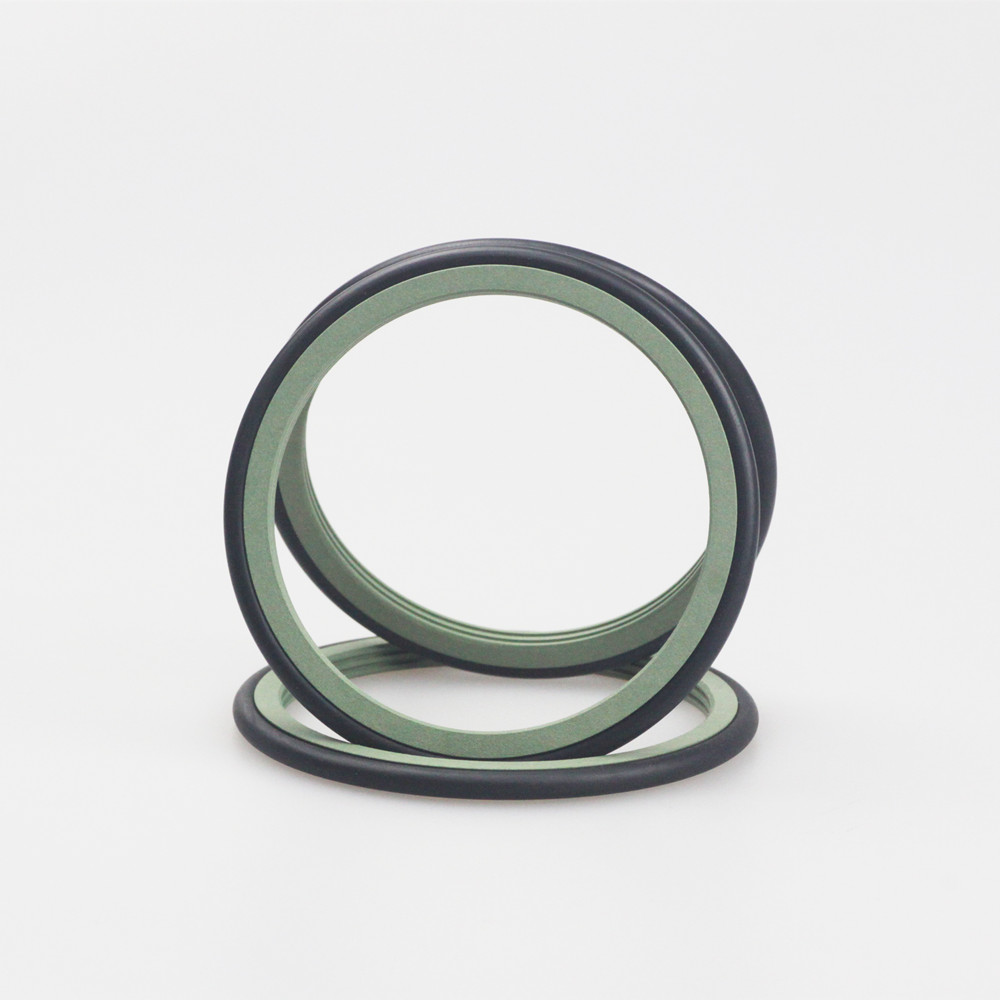

Shaft seals are indispensable components in rotating machinery, tasked with containing process fluids, retaining lubricants, blocking external contaminants, and ensuring safe, efficient operation across pressure, temperature, and speed ranges. They are widely deployed in pumps, compressors, turbines, motors, gearboxes, and automotive powertrains. Based on structural design, contact mode, and working principle, shaft seals are categorized into mechanical seals, packing seals, radial lip seals, labyrinth seals, dry gas seals, and magnetic seals. Each type offers distinct performance traits to match diverse industrial conditions.

Mechanical seals are precision contacting face seals, widely used in demanding fluid handling systems. They consist of a rotating ring attached to the shaft and a stationary ring fixed to the housing, with spring loading maintaining close contact between the two lapped faces. A thin fluid film between the faces provides lubrication and heat dissipation, while secondary seals (O-rings or gaskets) prevent side leakage. Materials such as silicon carbide, tungsten carbide, carbon, and ceramics deliver high wear, corrosion, and thermal resistance. Mechanical seals excel in high-pressure, high-temperature, and corrosive applications, including centrifugal pumps, chemical reactors, petroleum refining equipment, and marine propulsion systems. They offer minimal leakage, long service life, and low friction loss, though they require precise installation and clean operating conditions.

Gland packing seals, also known as compression packing seals, are traditional and cost-effective contacting seals. Made from braided fibers, graphite, PTFE, or aramid materials, they are packed into the annular stuffing box between the shaft and housing. A gland follower compresses the packing to generate radial contact pressure and form a dynamic seal. Lubrication or flush fluid is often supplied to reduce friction and extend life. These seals are easy to install, repair, and replace, making them suitable for low-to-medium pressure, low-speed equipment such as water pumps, mixers, agitators, and basic process pumps. Their drawbacks include higher leakage, regular gland adjustment, and faster shaft wear compared to mechanical seals.

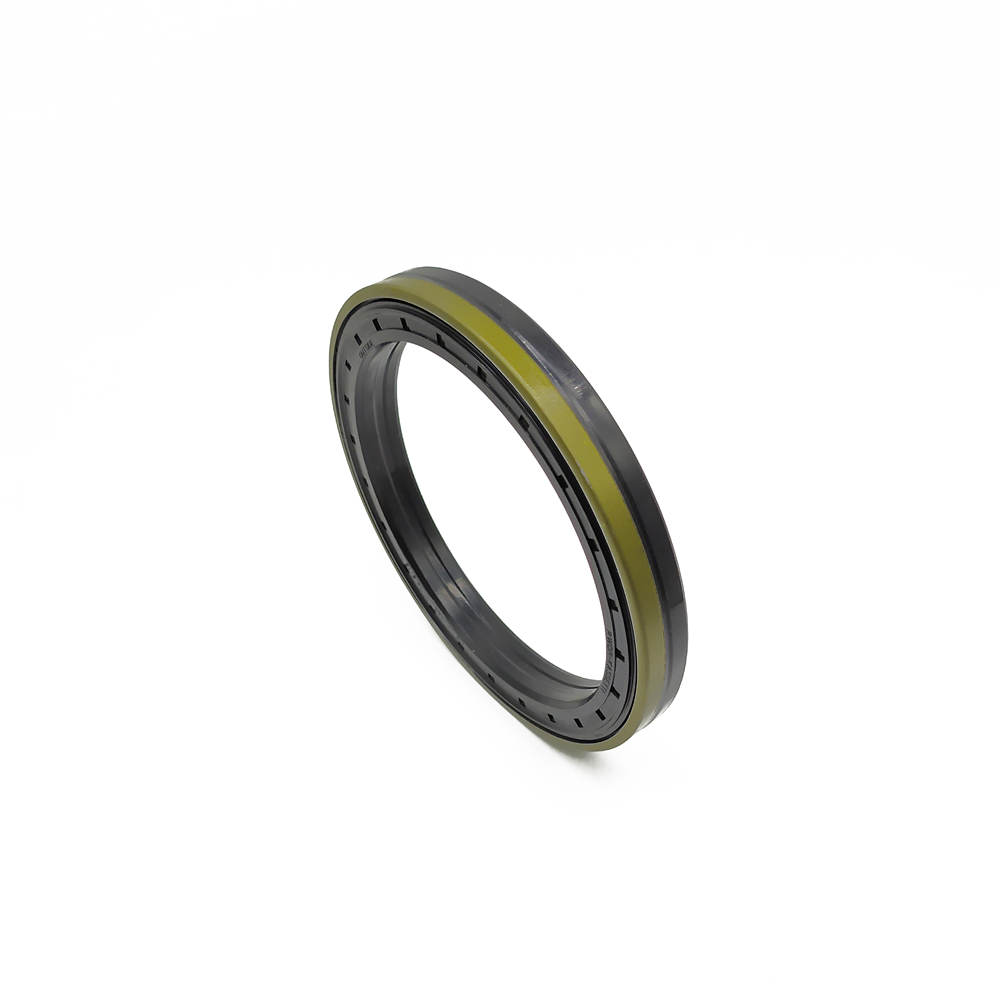

Radial lip seals, commonly called oil seals, are the most widely used low-pressure shaft seals. They feature a metal skeleton for structural rigidity, an elastomeric sealing lip (NBR, FKM, or PTFE), and a garter spring to maintain consistent lip contact with the shaft. They primarily retain lubricating oil and block dust, moisture, and debris. Ideal for low-pressure, moderate-speed rotating systems, they are standard in automotive engines, gearboxes, wheel hubs, small electric motors, and household appliances. Compact, low-cost, and reliable, they dominate light-duty and general-purpose applications where high-pressure sealing is unnecessary.
