How to Choose the Right O-ring

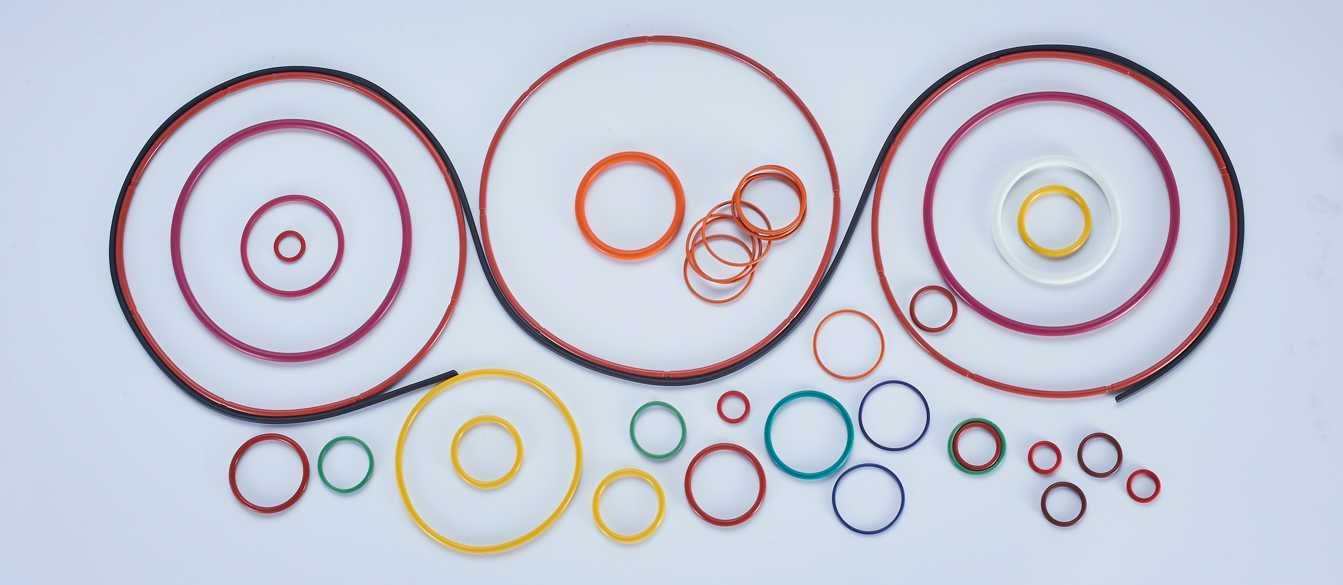

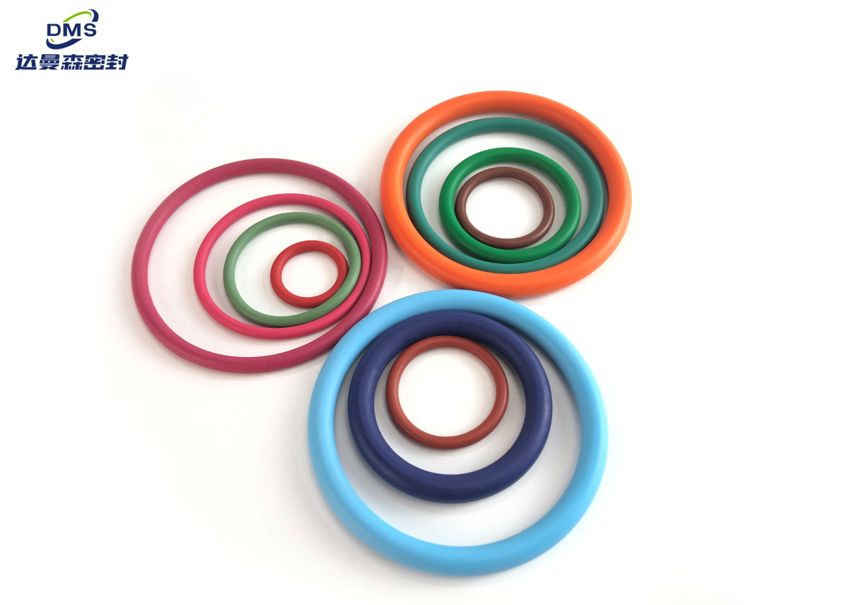

The O-ring is the most fundamental and widely used sealing component in mechanical equipment.

operational safety of the equipment. Incorrect selection can easily lead to leakage, aging, cracking, deformation, etc., causing equipment failures, oil and gas leakage, and other hazards. Therefore, scientific selection is the key to the design and maintenance of the sealing system.

Material selection is the primary core. It needs to be precisely matched according to the type of medium and the operating environment. Different rubber materials have greatly varying properties in terms of oil resistance, water resistance, high-temperature resistance, and corrosion resistance.
1. Commonly used nitrile rubber (NBR) has high cost performance and excellent oil resistance, suitable for common working conditions such as hydraulic oil and lubricating oil, and is the preferred choice for general mechanical equipment;

2. Fluorine rubber (FKM) has outstanding high-temperature, corrosion resistance, and aging resistance, and can be adapted to harsh working conditions such as high temperatures, acids, alkalis, and organic solvents. It is mostly used in industrial high-temperature equipment and chemical equipment;

3. Silicone rubber (VMQ) has low-temperature resistance and is environmentally friendly and non-toxic. It is suitable for food, medical, and low-temperature equipment scenarios, but has relatively weak mechanical wear resistance;

4. Ethylene propylene diene monomer rubber (EPDM) has water resistance, weather resistance, and ozone resistance, suitable for humid and outdoor equipment environments. It is not suitable for oil-based media.

Secondly, how to choose the size. Size matching is the foundation for effective sealing, and it must strictly follow common standards such as national, Japanese, and American standards.

When selecting, it is necessary to accurately confirm the two core parameters of the O-ring's diameter and inner diameter, and match the equipment's groove size.

An oversized size can easily lead to compression deformation and assembly jamming, while a too small size will result in insufficient preload force and poor sealing, causing leakage.

Thirdly, it is necessary to distinguish between static sealing and dynamic sealing scenarios. Dynamic sealing equipment needs to reserve a reasonable gap to avoid O-ring long-term friction and wear. Static sealing focuses on the degree of size fit to ensure the stability of static sealing.

Fourthly, the selection of working conditions and hardness is complementary and directly affects the O-ring's bearing capacity and wear resistance. Common O-rings have a hardness ranging from 60 to 90 Shore A. Low-pressure and static sealing is suitable for soft rubber materials with a temperature range of 60 to 70 degrees, providing better adhesion and tighter sealing; for high-pressure, dynamic reciprocating motion, and frequent friction conditions, high-hardness rubber materials with a temperature range of 80 to 90 degrees need to be selected, which can resist compression and wear and effectively avoid gap extrusion and damage under high pressure. At the same time, materials need to be selected based on the temperature range to avoid brittle cracking at low temperatures and failure at high temperatures.

In summary, O-ring selection does not need to blindly pursue high-end materials. The core is to ensure compatibility with the working conditions, precise size, material matching, and reasonable hardness. Combined with the equipment's medium, temperature, pressure, and motion mode, make a comprehensive judgment to avoid common misunderstandings, so as to select the most suitable O-ring from the source, prevent sealing failures, reduce equipment maintenance costs, and ensure the long-term stable operation of the equipment.
