Why Spring Energized Seals Are Becoming More and More Popular

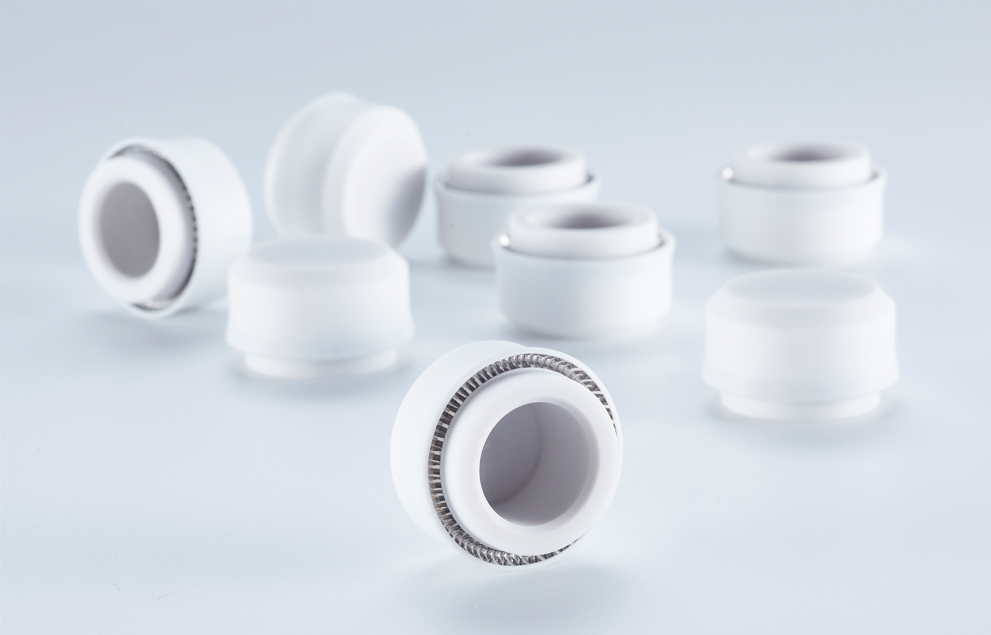

Spring energized seals (Variseals) are widely adopted in hydraulic, chemical, new energy, semiconductor and food industries, gradually replacing traditional rubber seals. Here are the main reasons:

1. Constant spring preload achieves zero leakage
   The built-in metal spring provides lasting tension under vacuum, low pressure and high pressure. It automatically compensates for wear, shaft deflection and groove tolerance to avoid leakage. Higher working pressure brings tighter sealing effect.
2. Superior chemical and temperature resistance
   Made of modified PTFE, they resist almost all corrosive fluids without swelling or cracking. The operating temperature ranges from -200℃ to 300℃, suitable for cryogenic and high-temperature equipment. Low friction ensures stable high-speed movement.
3. Versatile for static, reciprocating and rotary applications
   One seal fits multiple working conditions. It can be installed into standard O-ring grooves without reworking hardware. Turned production supports non-standard custom sizes with no mold cost.
4. Longer service life and lower total operating cost
   They feature outstanding wear and aging resistance, greatly cutting downtime and frequent replacement costs. Though the unit price is higher, the long-term comprehensive cost is much lower.
5. Clean material for high-end industries
   PTFE generates no contaminants, complying with food, medical and vacuum industry standards.
6. Perfect match for emerging industries
   New energy, hydrogen energy and semiconductor equipment have harsh working conditions, where ordinary rubber seals fail easily, making spring energized seals an irreplaceable solution.

In brief, spring energized seals solve many bottlenecks of conventional rubber seals, meeting the higher sealing requirements of modern industrial equipment, so they gain growing popularity worldwide.
