1. Application and properties

Suitable for double-acting sealing of reciprocating motion piston. It is composed of three parts.

The rubber star-shaped ring is in the middle of the top, the rubber O-ring is at the bottom, and the filling PTFE

sealing sliding ring is in the middle.

It has dual safety with low friction and high elasticity, and good dynamic and static sealing performance.

It allows for larger extrusion clearances while also having pressure retention capabilities. It has good dynamic and static sealing performance with minimal leakage in the cylinder. It is suitable for cylinders with strict requirements for position or pressure retention and relatively slow movement speed (<0.5m/s), such as pressure machine cylinders, support cylinders, positioning cylinders, piston-type accumulators, etc.

It has low friction coefficient and good sliding performance without crawling phenomenon. It can adapt to a wide range of working media and working temperature range by changing the material of O-ring and star-shaped ring. It is suitable for integral piston and the installation groove is small.

Compliant with GB/T 15242.1-94 and GB/T 15242.3-94 standards.

2. Standard material

Sealing ring: filled PTFE

O-Ring: NBR / FKM

X-Ring: NBR / FKM

3. Working Conditions

Working Conditions

Diameter

Range

Pressure

Range

Temperature

Range°C

Speed

Medium

16～2000mm

0～20MPa

-30～100(NBR)

-20～160(FKM)

0.5m/s

Hydraulic oil,

flame retardant liquid, water,

4. Related Dimensions:

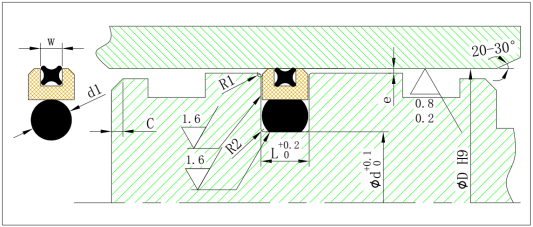

R2=0.5～2; C=(0.5～1.0)L；The specific values are selected according to the section size of the seal. The remaining values are listed in the table below:

Bore Diameter		Groove	Groove	Radius	Radial Clearance			O-Ring	X ring Seal
D		Diameter	Width	Radius	e max			Cross-Section	Cross-Sction
Standard	Light	d	H	R1	10	20	30	d1	W
Application	Application	d	H	R1	MPa	MPa	MPa	d1	W
15～39.9	40～79.9	D-11.0	4.2	0.5	0.25	0.15	0.1	3.53	1.78
40～79.9	80～132.9	D-15.5	6.3	0.6	0.3	0.2	0.15	5.33	1.78
80～132.9	133～252.9	D-21.0	8.1	1	0.3	0.2	0.15	6.99	2.62
133～252.9	-	D-24.5	8.1	1	0.3	0.2	0.15	6.99	2.62
253～462.9	-	D-28.0	9.5	1	0.45	0.3	0.25	8.4	3.53
463～700	-	D-35.0	11.5	1	0.55	0.4	0.35	10	5.33

Remark:The R1 value in the table represents its maximum value.

5.Marking method:

Mark with the dimension of installation groove as below：

For example: The first seal in the Installation Dimensions table is marked as: DAQ16×5×4.2

6.Installation Dimensions

Bore	Groove	Groove	Part No.	O-ring	X-ring	Bore	Groove	Groove	Part No.	O-ring	X-ring
Dia	Dia.	Width	Part No.	Dimensions	Dimensions	Dia	Dia.	Width	Part No.	Dimensions	Dimensions
D	d	L				D	d	L
16	5	4.2	DAQ0160	4.34×3.53	12.42×1.78	110	94.5	6.3	DAQ1100L	91.44×5.33	101.32×1.78
18	7	4.2	DAQ0180	6.42×3.53	14.00×1.78	110	89	8.1	DAQ1100	88.00×6.99	101.27×2.62
20	9	4.2	DAQ0200	8.42×3.53	15.60×1.78	115	99.5	6.3	DAQ1150L	97.79×5.33	107.67×1.78
22	11	4.2	DAQ0220	10.69×3.53	17.17×1.78	115	94	8.1	DAQ1150	93.00×6.99	107.62×2.62
25	14	4.2	DAQ0250	13.87×3.53	20.35×1.78	120	104.5	6.3	DAQ1200L	100.97×5.33	114.02×1.78
28	17	4.2	DAQ0280	15.47×3.53	23.52×1.78	120	99	8.1	DAQ1200	98.00×6.99	107.62×2.62
30	19	4.2	DAQ0300	18.66×3.53	25.12×1.78	125	109.5	6.3	DAQ1250L	107.32×5.33	114.02×1.78
32	21	4.2	DAQ0320	20.22×3.53	26.7×1.78	125	104	8.1	DAQ1250	103.00×6.99	113.97×2.62
35	24	4.2	DAQ0350	23.40×3.53	29.87×1.78	130	114.5	6.3	DAQ1300L	113.67×5.33	120.37×1.78
40	29	4.2	DAQ0400L	28.17×3.53	34.65×1.78	130	109	8.1	DAQ1300	108.00×6.99	120.32×2.62
42	31	4.2	DAQ0420L	29.75×3.53	37.82×1.78	135	114	8.1	DAQ1350L	113.67×5.33	126.67×2.62
45	34	4.2	DAQ0450L	32.92×3.53	37.82×1.78	140	119	8.1	DAQ1400L	116.84×6.99	126.67×2.62
48	37	4.2	DAQ0480L	36.09×3.53	41.00×1.78	150	129	8.1	DAQ1500L	126.37×6.99	139.37×2.62
50	39	4.2	DAQ0500L	37.70×3.53	44.17×1.78	160	139	8.1	DAQ1600L	135.89×6.99	145.72×2.62
50	34.5	6.3	DAQ0500	32.69×5.33	44.17×1.78	170	149	8.1	DAQ1700L	145.42×6.99	158.42×2.62
52	41	4.2	DAQ0520L	40.87×3.53	47.35×1.78	180	159	8.1	DAQ1800L	158.12×6.99	171.11×2.62
55	44	4.2	DAQ0550L	44.04×3.53	50.52×1.78	190	169	8.1	DAQ1900L	164.47×6.99	177.47×2.62
60	49	4.2	DAQ0600L	47.22×3.53	53.70×1.78	200	179	8.1	DAQ2000L	177.17×6.99	190.17×2.62
63	52	4.2	DAQ0630L	50.39×3.53	56.87×1.78	210	189	8.1	DAQ2100L	183.52×6.99	196.52×2.62
63	47.5	6.3	DAQ0630	46.99×5.33	56.87×1.78	220	199	8.1	DAQ2200L	196.22×6.99	202.87×2.62
65	54	4.2	DAQ0650L	53.57×3.53	60.05×1.78	230	209	8.1	DAQ2300L	208.92×6.99	215.57×2.62
70	59	4.2	DAQ0700L	56.74×3.53	63.22×1.78	240	219	8.1	DAQ2400L	215.27×6.99	221.92×2.62
70	54.5	6.3	DAQ0700	53.34×5.33	63.22×1.78	250	229	8.1	DAQ2500L	227.97×6.99	234.62×2.62
75	64	4.2	DAQ0750L	63.09×3.53	69.57×1.78	250	225.5	8.1	DAQ2500	227.97×6.99	234.62×2.62
80	64.5	6.3	DAQ0800L	62.87×5.33	72.75×1.78	280	252	9.5	DAQ2800	250.00×8.40	266.29×3.53
80	59	8.1	DAQ0800	58.00×6.99	71.12×2.62	300	272	9.5	DAQ3000	270.00×8.40	278.99×3.53
85	69.5	6.3	DAQ0850L	69.22×5.33	75.92×1.78	310	282	9.5	DAQ3100	280.00×8.40	291.69×3.53
85	64	8.1	DAQ0850	63.00×6.99	75.87×2.62	320	292	9.5	DAQ3200	290.00×8.40	304.39×3.53
90	74.5	6.3	DAQ0900L	72.39×5.33	82.27×1.78	350	322	9.5	DAQ3500	320.00×8.40	329.79×3.53
90	69	8.1	DAQ0900	68.00×6.99	82.22×2.62	400	372	9.5	DAQ4000	370.00×8.40	380.59×3.53
95	79.5	6.3	DAQ0950L	78.74×5.33	88.62×1.78	420	392	9.5	DAQ4200	390.00×8.40	380.59×3.53
95	74	8.1	DAQ0950	73.00×6.99	82.22×2.62	450	422	9.5	DAQ4500	420.00×8.40	430.66×3.53
100	84.5	6.3	DAQ1000L	81.92×5.33	88.62×1.78	480	445	11.5	DAQ4800	444.00×10.0	456.06×5.33
100	79	8.1	DAQ1000	78.00×6.99	88.57×2.62	500	465	11.5	DAQ5000	464.00×10.0	456.06×5.33
105	89.5	6.3	DAQ1050L	88.27×5.33	94.97×1.78	600	565	11.5	DAQ6000	564.00×10.0	557.58×5.33
105	84	8.1	DAQ1050	83.00×6.99	94.92×2.62	700	665	11.5	DAQ7000	664.00×10.0	658.88×5.33
