FSR-O Glass Fiber with PTFE Spring Loaded Face Seals
FSR-O
Quantity:
1. Application and properties
Suitable for single-acting sealing of hydraulic reciprocating rod as well as rotary rod sealing, and has good sealing performance at high, medium and low pressure.
The working pressure range is wide and pressure resistance can be enhanced by adding a back-up ring
The friction coefficient is small, the contact pressure with the matching surface is low, the friction with the matching surface is small and it can work with or without lubrication. It has good wear resistance and long life
The working medium of the sealing sleeve is widely adaptable, and other chemicals do not react with it except soluble alkali metal, high temperature fluorine gas and chlorine trifluoride.
Operating temperature range from -200°C to +250°C.
It can be used for special conditions such as vacuum, low temperature, static sealing, extremely low speed, and small stroke.
Suitable for sealing groove sizes in aviation, military and industrial fields. The installation groove is small and groove is open or semi-open.
2. Standard Material
Sealing ring: filled PTFE
Spring: SUS301, 302, 304, 316 or 718. Default use SUS301, please specify if there are special requirment/103A
3. Working Conditions
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range°C | Speed | Medium |
2～2000mm | 0～80MPa | -200～250℃ | 0.5m/s | High and low temperature oil water, Steam and other fluids |
4. Related Dimensions

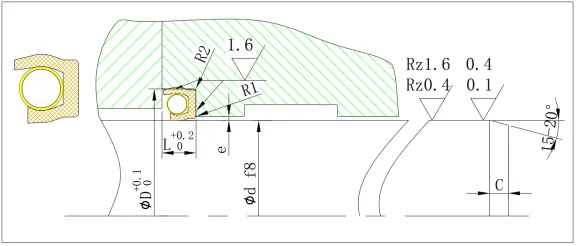

R1=0.1～0.2; R2=0.3～0.5; C=(0.5～1)L; The specific values are selected according to the section size of the seal. The remaining values are listed in the table below:
| Rod | Groove | Groove | Radial |
| Diameter | Width | Diameter | Clearance e |
| d | L | D | e |
| 2～10 | 2.5 | d+3.0 | 0.05 |
| 10～22 | 3.2 | d+4.0 | 0.065 |
| 22～52 | 4.7 | d+6.0 | 0.075 |
| 48～150 | 7.5 | d+10.0 | 0.09 |
| 150～1000 | 11 | d+15.0 | 0.1 |
5. Marking method
Mark it with the dimension of installation groove as below：
FSR “Rod Diameter d” × “Groove Diameter D” × “Groove Width L” - “Spring Material” O Shape
For example: FSR100×110×7.5-316O means “Rod Variseals with O-shaped Spring ，Working Dimension：Rod Dia. 100，Groove Dia. 110，Groove Width 7.5，Spring material SUS316
