GSJ - Bronze PTFE Hydraulic Rod Seal Step Seal with NBR/FKM O-Ring

GSJ0004-GSJ2000 Rod Seals

Quantity:

Contact Now

1.Application and properties

Suitable for single-acting rod seals, can be connected in series to withstand high pressure.

It has low friction coefficient and can work with or without lubrication, and can be used for oil-free lubrication cylinder seals. It is recommended to prioritize for servo cylinders requiring rapid response. It can be used for special conditions such as extremely high speed, extremely low speed, micro-stroke etc.

The working medium adaptability and working temperature range can be changed by replacing the material of the O-ring.

The installation groove is small, which is beneficial to design the size of cylinder. The seal is easy to install and generally does not require special tools.

Compliant with GB/T 15242.1-94 and GB/T 15242.3-94 standards.

Products of different sections can be selected according to the size of the actual working pressure value, in principle, the greater the working pressure, the larger the cross-section should be selected.

2.Standard material

Sealing ring: filled PTFE

Ring: NBR / FKM

3.Working Conditions

Working Condition

Diameter Range

Pressure Range

Temperature

Range°C

Speed

Medium

4～1600mm

0～35MPa

-30～100(NBR),

-20～160(FKM)

1.5m/s

Hydraulic oil,

flame retardant liquid, water, gas

4.Related Dimensions:

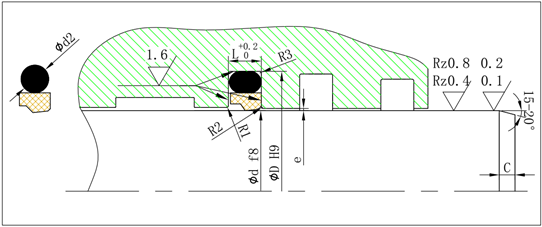

R1=0.3～0.5; R2=0.1～0.2; R3=0.5～1; C=(0.5～0.7)L.The specific values are selected according to the section size of the seal. The remaining values are listed in the table below:

Rod Diameter d			Groove Diameter	Groove Width	Radial Clearance e			O-Ring
								Cross-Section

Standard Application	Light Application	Heavy Duty Application	D	L	10	20	40	d2
					MPa	MPa	MPa

3～7.9	8～18.9	—	d+4.9	2.2	0.3	0.2	0.15	1.78
8～18.9	19～37.9	—	d+7.3	3.2	0.4	0.25	0.15	2.62
19～37.9	38～199.9	8～18.9	d+10.7	4.2	0.4	0.25	0.2	3.53
38～199.9	200～255.9	19～37.9	d+15.1	6.3	0.5	0.3	0.2	5.33
200～255.9	256～649.9	38～199.9	d+20.5	8.1	0.6	0.35	0.25	6.99
256～649.9	650～999.9	200～255.9	d+24.0	8.1	0.6	0.35	0.25	6.99
650～999.9	≥1000.0	256～649.9	d+27.3	9.5	0.7	0.5	0.3	8.4
≥1000.0	—	650～999.9	d+38.0	13.8	1	0.7	0.6	12

5.Annotation method

Mark with Order No. listed in the Installation Dimensions table

6. Installation Dimensions

Rod Dia.	Groove Dia.	Groove width	Order No.	O-Ring Dimensions	Rod Dia.	Groove Dia.	Groove width	Order No.	O-Ring Dimensions
d	D	L	Order No.	O-Ring Dimensions	d	D	L	Order No.	O-Ring Dimensions
4	8.9	2.2	GSJ0040	5.28×1.78	140	155.1	6.3	GSJ1400	145.42×5.33
5	9.9	2.2	GSJ0050	6.75×1.78	140	160.5	8.1	GSJ1400H	148.59×6.99
6	10.9	2.2	GSJ0060	7.65×1.78	145	160.1	6.3	GSJ1450	148.59×5.33
8	12.9	2.2	GSJ0080L	9.25×1.78	145	165.5	8.1	GSJ1450H	151.77×6.99
8	15.3	3.2	GSJ0080	10.77×2.62	150	165.1	6.3	GSJ1500	155.00×5.33
10	14.9	2.2	GSJ0100L	11.80×1.78	150	170.5	8.1	GSJ1500H	158.12×6.99
10	17.3	3.2	GSJ0100	12.37×2.62	160	175.1	6.3	GSJ1600	164.47×5.33
12	16.9	2.2	GSJ0120L	13.30×1.78	160	180.5	8.1	GSJ1600H	164.47×6.99
12	19.3	3.2	GSJ0120	13.94×2.62	165	180.1	6.3	GSJ1650	170.82×5.33
14	18.9	2.2	GSJ0140L	15.60×1.78	170	185.1	6.3	GSJ1700	175.00×5.33
14	21.3	3.2	GSJ0140	15.54×2.62	170	190.5	8.1	GSJ1700H	177.17×6.99
15	19.9	2.2	GSJ0150L	16.67×1.78	180	195.1	6.3	GSJ1800	183.32×5.33
15	22.3	3.2	GSJ0150	17.12×2.62	180	200.5	8.1	GSJ1800H	186.02×6.99
16	20.9	2.2	GSJ0160L	17.17×1.78	190	205.1	6.3	GSJ1900	196.22×5.33
16	23.3	3.2	GSJ0160	18.72×2.62	200	215.1	6.3	GSJ2000L	205.00×5.33
18	22.9	2.2	GSJ0180L	18.77×1.78	200	220.5	8.1	GSJ2000	206.00×6.99
18	25.3	3.2	GSJ0180	20.29×2.62	210	230.5	8.1	GSJ2100	215.27×6.99
19	29.7	4.2	GSJ0190	23.39×3.53	220	240.5	8.1	GSJ2200	227.97×6.99
20	27.3	3.2	GSJ0200L	21.89×2.62	230	245.1	6.3	GSJ2300L	234.32×5.33
20	30.7	4.2	GSJ0200	23.39×3.53	230	250.5	8.1	GSJ2300	236.00×6.99
22	29.3	3.2	GSJ0220L	23.47×2.62	240	260.5	8.1	GSJ2400	243.00×6.99
22	32.7	4.2	GSJ0220	26.57×3.53	250	270.5	8.1	GSJ2500	253.37×6.99
25	32.3	3.2	GSJ0250L	26.64×2.62	256	280	8.1	GSJ2560	266.07×6.99
25	35.7	4.2	GSJ0250	29.74×3.53	260	284	8.1	GSJ2600	266.07×6.99
28	38.7	4.2	GSJ0280	31.34×3.53	270	294	8.1	GSJ2700	278.77×6.99
30	40.7	4.2	GSJ0300	34.52×3.53	280	304	8.1	GSJ2800	291.47×6.99
32	42.7	4.2	GSJ0320	36.09×3.53	290	314	8.1	GSJ2900	300.00×6.99
35	45.7	4.2	GSJ0350	37.69×3.53	300	324	8.1	GSJ3000	307.00×6.99
36	46.7	4.2	GSJ0360	40.87×3.53	320	344	8.1	GSJ3200	329.57×6.99
38	53.1	6.3	GSJ0380	43.82×5.33	330	354	8.1	GSJ3300	355.00×6.99
40	50.7	4.2	GSJ0400L	44.04×3.53	340	364	8.1	GSJ3400	345.00×6.99
40	55.1	6.3	GSJ0400	43.82×5.33	350	374	8.1	GSJ3500	354.97×6.99
42	57.1	6.3	GSJ0420	46.99×5.33	360	384	8.1	GSJ3600	367.67×6.99
45	55.7	4.2	GSJ0450L	47.22×3.53	370	394	8.1	GSJ3700	380.37×6.99
45	60.1	6.3	GSJ0450	50.17×5.33	380	404	8.1	GSJ3800	387.00×6.99
50	60.7	4.2	GSJ0500L	53.57×3.53	390	414	8.1	GSJ3900	400.00×6.99
50	65.1	6.3	GSJ0500	56.52×5.33	400	424	8.1	GSJ4000	405.26×6.99
55	70.1	6.3	GSJ0550	59.69×5.33	410	434	8.1	GSJ4100	417.96×6.99
56	66.7	4.2	GSJ0560L	59.92×3.53	420	444	8.1	GSJ4200	430.66×6.99
56	71.1	6.3	GSJ0560	59.69×5.33	430	454	8.1	GSJ4300	437.00×6.99
56	76.5	8.1	GSJ0560H	62.87×6.99	440	464	8.1	GSJ4400	450.00×6.99
60	75.1	6.3	GSJ0600	66.04×5.33	450	474	8.1	GSJ4500	456.06×6.99
63	73.7	4.2	GSJ0630L	66.27×3.53	460	484	8.1	GSJ4600	468.76×6.99
63	78.1	6.3	GSJ0630	69.22×5.33	480	504	8.1	GSJ4800	487.00×6.99
65	75.7	4.2	GSJ0650L	69.44×3.53	490	514	8.1	GSJ4900	500.00×6.99
65	80.1	6.3	GSJ0650	69.22×5.33	500	524	8.1	GSJ5000	506.87×6.99
70	80.7	4.2	GSJ0700L	72.62×3.53	520	544	8.1	GSJ5200	532.26×6.99
70	85.1	6.3	GSJ0700	75.57×5.33	540	564	8.1	GSJ5400	552.66×6.99
70	90.5	8.1	GSJ0700H	78.74×6.99	550	574	8.1	GSJ5500	560.00×6.99
75	85.7	4.2	GSJ0750L	78.97×3.53	580	604	8.1	GSJ5800	582.68×6.99
75	90.1	6.3	GSJ0750	78.74×5.33	600	624	8.1	GSJ6000	608.08×6.99
80	90.7	4.2	GSJ0800L	82.14×3.53	620	644	8.1	GSJ6200	633.48×6.99
80	95.1	6.3	GSJ0800	85.09×5.33	630	654	8.1	GSJ6300	640.00×6.99
80	100.5	8.1	GSJ0800H	88.27×6.99	640	664	8.1	GSJ6400	658.88×6.99
85	95.7	4.2	GSJ0850L	88.49×3.53	650	677.3	9.5	GSJ6500	660.00×8.40
85	100.1	6.3	GSJ0850	91.44×5.33	660	687.3	9.5	GSJ6600	670.00×8.40
85	105.5	8.1	GSJ0850H	91.44×6.99	680	707.3	9.5	GSJ6800	690.00×8.40
90	100.7	4.2	GSJ0900L	94.84×3.53	685	712.3	9.5	GSJ6850	695.00×8.40
90	105.1	6.3	GSJ0900	95.50×5.33	700	727.3	9.5	GSJ7000	710.00×8.40
90	110.5	8.1	GSJ0900H	97.79×6.99	710	737.3	9.5	GSJ7100	720.00×8.40
95	105.7	4.2	GSJ0950L	98.02×3.53	730	757.3	9.5	GSJ7300	740.00×8.40
95	110.1	6.3	GSJ0950	100.97×5.33	750	777.3	9.5	GSJ7500	760.00×8.40
100	110.7	4.2	GSJ1000L	104.37×3.53	760	787.3	9.5	GSJ7600	770.00×8.40
100	115.1	6.3	GSJ1000	104.14×5.33	780	807.3	9.5	GSJ7800	790.00×8.40
100	120.5	8.1	GSJ1000H	107.32×6.99	790	817.3	9.5	GSJ7900	800.00×8.40
105	120.1	6.3	GSJ1050	110.49×5.33	800	827.3	9.5	GSJ8000	810.00×8.40
105	125.5	8.1	GSJ1050H	113.67×6.99	810	837.3	9.5	GSJ8100	823.00×8.40
110	120.7	4.2	GSJ1100L	113.89×3.53	820	847.3	9.5	GSJ8200	830.00×8.40
110	125.1	6.3	GSJ1100	113.67×5.33	830	857.3	9.5	GSJ8300	843.00×8.40
110	130.5	8.1	GSJ1100H	116.84×6.99	850	877.3	9.5	GSJ8500	860.00×8.40
115	130.1	6.3	GSJ1150	120.02×5.33	870	897.3	9.5	GSJ8700	883.00×8.40
120	135.1	6.3	GSJ1200	126.37×5.33	880	907.3	9.5	GSJ8800	890.00×8.40
120	140.5	8.1	GSJ1200H	126.37×6.99	890	917.3	9.5	GSJ8900	903.00×8.40
125	140.1	6.3	GSJ1250	129.54×5.33	900	927.3	9.5	GSJ9000	910.00×8.40
125	145.5	8.1	GSJ1250H	132.72×6.99	930	957.3	9.5	GSJ9300	943.00×8.40
130	145.1	6.3	GSJ1300	135.89×5.33	950	977.3	9.5	GSJ9500	960.00×8.40
130	150.5	8.1	GSJ1300H	135.89×6.99	1000	1027.3	9.5	GSJ10000L	1000.0×8.40
140	150.7	4.2	GSJ1400L	142.47×3.53	1000	1038	13.8	GSJ10000	1016.0×12.0
