Spn Piston Rod Seal Injection Molding Machine Hydraulic Cutting Machine Sealing Ring
SPN0018-2000
Quantity:
1.Application and properties
Suitable for single-acting and double-acting reciprocating rod sealing, particularly for heavy-duty conditions. It has strong extrusion resistance in a wide range of fluids and high-temperature environments.
Low friction, simple groove and can be used for special conditions such as extremely low speed, micro-stroke etc.
The seal is easy to install and generally does not require special tools.
2. Standard material
Sealing ring: filled PTFE
Square rubber ring: NBR / FKM
3.Working conditions
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range°C | Speed | Medium |
18～2000mm | 0～35MPa | -30～100(NBR) -20～160(FKM) | 1.5m/s | general hydraulic oil, water glycol Hydraulic oil and water emulsion type hydraulic oil |

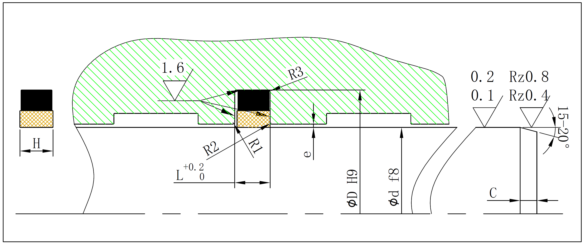

4. Related Dimensions
R1=0.3～0.5; R2=0.1～0.2；R3=0.5～1；e=0.2～0.5;C=(0.5～0.7)L. The specific values are selected according to the section size of the seal.
5. Marking method
Mark it with the dimension of installation groove
For example: The φ100 SPN seal is marked as SPN100×113.4×7.5
6. Installation Dimensions
Nominal/seal size | L | Part No. | Nominal/Seal size | L | Part No. | |||||
d | D | H | d | D | H | |||||
18 | 27 | 4.3 | 4.5 | SPN0180 | 70 | 83 | 7.3 | 7.5 | SPN0700 | |
20 | 29 | 4.3 | 4.5 | SPN0200 | 75 | 88 | 7.3 | 7.5 | SPN0750 | |
22 | 31 | 4.3 | 4.5 | SPN0220 | 80 | 93 | 7.3 | 7.5 | SPN0800 | |
27 | 36 | 4.3 | 4.5 | SPN0270 | 90 | 103.4 | 7.3 | 7.5 | SPN0900 | |
31.5 | 40.5 | 4.3 | 4.5 | SPN0315 | 100 | 113.4 | 7.3 | 7.5 | SPN1000 | |
47 | 60 | 7.3 | 7.5 | SPN0470 | 110 | 123.4 | 7.3 | 7.5 | SPN1100 | |
53 | 66 | 7.3 | 7.5 | SPN0530 | 120 | 133.4 | 7.3 | 7.5 | SPN1200 | |
60 | 73 | 7.3 | 7.5 | SPN0600 | 130 | 143.4 | 7.3 | 7.5 | SPN1300 | |
65 | 78 | 7.3 | 7.5 | SPN0650 | 140 | 153.4 | 7.3 | 7.5 | SPN1400 | |
