Rod Seal For Excavator Parts For Hydraulic Cylinder Parts/Hydraulic Seals GSJ-W

GSJ-W0050-2000

Quantity:

Contact Now

1. Application and properties

Suitable for single-acting heavy duty rod sealing. Strong extrusion resistance and can be used for large working pressure. Low friction and simple groove and it can be used in the media with oil and special conditions such as extremely high speed, extremely low speed, micro-stroke etc.

The working medium adaptability and working temperature range can be changed by replacing the material of the square-ring

The installation groove is small, which is conducive to design cylinder size. The seal is easy to install and generally does not require special tools.

2. Standard material

Sealing ring: filled PTFE

Square Ring: NBR / FKM

3. Working conditions

Working conditions

Diameter Range

Pressure Range

Temperature

Range°C

Speed

Medium

50～2000mm

0～40MPa

-30～100(NBR)

-20～160(FKM)

1.5m/s

Hydraulic oil,

flame retardant liquid

4. Related Dimensions

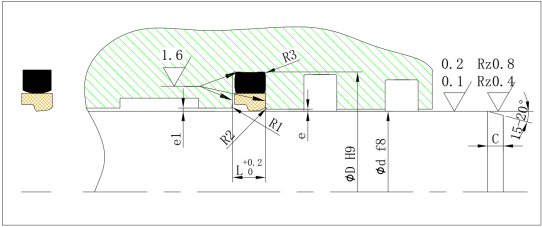

R1=0.5～2; R3=0.5-2; e=0.2～0.5; e1=0.2～1; C=(0.5～0.7)L. The specific values are selected according to the section size of the seal. The remaining values are listed in the table below:

Rod Dia.	Outer Dia.	Groove Width	Radius	Radial Clearance e
d	D	L	R2	10MPa	20MPa	40MPa
50～69.9	d+15	7.5	0.4	0.5	0.4	0.3
70～149.9	d+20	10	0.4	0.7	0.5	0.4
200～244.9	d+25	12.5	0.4	0.8	0.6	0.5
245～519.9	d+30	15	0.8	0.9	0.7	0.6
520～769.9	d+35	17.5	1.2	1	0.8	0.7
770～1500	d+40	20	1.2	1	0.8	0.7

5. Marking method

Mark it with the dimension of installation groove

For example: The heavy-duty φ100 rod seal is marked as GSJ-W100×120×10

6. Installation Dimensions:

Rod Dia.	Outer Dia.	Groove width	Order No.	Rod Dia.	Outer Dia.	Groove width	Order No.
d	D	L	Order No.	d	D	L	Order No.
50	65	7.5	GSJ-W0500	450	480	15	GSJ-W4500
60	75	7.5	GSJ-W0600	460	490	15	GSJ-W4600
70	85	7.5	GSJ-W0700	470	500	15	GSJ-W4700
75	95	10	GSJ-W0750	480	510	15	GSJ-W4800
80	100	10	GSJ-W0800	490	520	15	GSJ-W4900
100	120	10	GSJ-W1000	500	530	15	GSJ-W5000
110	130	10	GSJ-W1100	510	540	15	GSJ-W5100
115	135	10	GSJ-W1150	520	550	15	GSJ-W5200
120	140	10	GSJ-W1200	530	560	15	GSJ-W5300
130	150	10	GSJ-W1300	540	575	17.5	GSJ-W5400
140	160	10	GSJ-W1600	545	580	17.5	GSJ-W5450
145	165	10	GSJ-W1450	550	585	17.5	GSJ-W5500
150	170	10	GSJ-W1500	560	595	17.5	GSJ-W5600
160	180	10	GSJ-W1600	570	605	17.5	GSJ-W5700
170	190	10	GSJ-W1700	580	615	17.5	GSJ-W5800
175	195	10	GSJ-W1750	590	625	17.5	GSJ-W5900
180	200	10	GSJ-W1800	600	635	17.5	GSJ-W6000
200	220	10	GSJ-W2000	620	655	17.5	GSJ-W6200
230	255	12.5	GSJ-W2300	630	665	17.5	GSJ-W6300
240	265	12.5	GSJ-W2400	640	675	17.5	GSJ-W6400
250	275	12.5	GSJ-W2500	645	680	17.5	GSJ-W6450
260	285	12.5	GSJ-W2600	650	685	17.5	GSJ-W6500
265	290	12.5	GSJ-W2650	660	695	17.5	GSJ-W6600
270	295	12.5	GSJ-W2700	670	705	17.5	GSJ-W6700
280	305	12.5	GSJ-W2800	680	715	17.5	GSJ-W6800
290	315	12.5	GSJ-W2900	690	725	17.5	GSJ-W6900
300	325	12.5	GSJ-W3000	700	740	20	GSJ-W7000
310	340	15	GSJ-W3100	720	760	20	GSJ-W7200
315	345	15	GSJ-W3150	730	770	20	GSJ-W7300
320	350	15	GSJ-W3200	740	780	20	GSJ-W7400
330	360	15	GSJ-W3300	750	790	20	GSJ-W7500
340	370	15	GSJ-W3400	760	800	20	GSJ-W7600
350	380	15	GSJ-W3500	770	810	20	GSJ-W7700
360	390	15	GSJ-W3600	790	830	20	GSJ-W7900
370	400	15	GSJ-W3700	800	840	20	GSJ-W8000
380	410	15	GSJ-W3800	810	850	20	GSJ-W8100
390	420	15	GSJ-W3900	820	860	20	GSJ-W8200
400	430	15	GSJ-W4000	830	870	20	GSJ-W8300
410	440	15	GSJ-W4100	850	890	20	GSJ-W8500
420	450	15	GSJ-W4200	900	940	20	GSJ-W9000
430	460	15	GSJ-W4300	950	990	20	GSJ-W9500
440	470	15	GSJ-W4400	1000	1040	20	GSJ-W10000
