Spnc Type Piston Rod Seal PTFE Double Triangle Seal

SPNC0003-4000

Quantity:

Contact Now

1.Application and properties

Suitable for double-acting reciprocating rod seal. It has extremely low leakage and can be applied in a wide range of media and temperature conditions, with low friction. For servo cylinders that require rapid response, it is recommended to give priority to this product.

The working medium adaptability and working temperature range can be changed by replacing the material of the O-ring.

The seal is easy to install and generally does not require special tools

Compliant with GB/T 15242.1-94 and GB/T 15242.3-94 standards.

2. Standard material

Sealing ring: filled PTFE

O-Ring: NBR / FKM

3. Working conditions

Working Conditions

Diameter

Range

Pressure

Range

Temperature

Range°C

Speed

Medium

3～2000mm

0～15MPa

-30～100(NBR)

-20～160(FKM)

1.5m/s

general hydraulic oil,

water, ethylene glycol emulsion

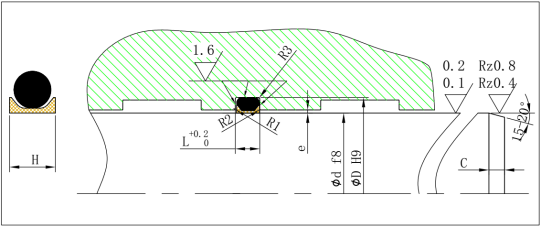

4. Related Dimensions

R1=0.3～0.5; R2=0.1～0.2; R3=0.5～1; e=0.1～0.25; C=(0.5～0.7)L. The specific values are selected according to the section size and working pressure of the seal.

5. Marking method

Mark it with the dimension of installation groove

For example: The Standard φ100 SPNC rod sealing ring is marked as SPNC100×110×7.5

6. Installation Dimensions

Nominal size			L	Part No.	Nominal size			L	Part No.
d	D	H	L	Part No.	d	D	H	L	Part No.
3	6	2.3	2.5	SPNC0030	52	62	7	7.5	SPNC0520
4	7	2.3	2.5	SPNC0040	53	63	7	7.5	SPNC0530
5	8	2.3	2.5	SPNC0050	55	65	7	7.5	SPNC0550
6	9	2.3	2.5	SPNC0060	56	66	7	7.5	SPNC0560
7	10	2.3	2.5	SPNC0070	58	68	7	7.5	SPNC0580
8	11	2.3	2.5	SPNC0080	60	70	7	7.5	SPNC0600
9	12	2.3	2.5	SPNC0090	62	72	7	7.5	SPNC0620
10	13	2.3	2.5	SPNC0100	63	73	7	7.5	SPNC0630
10	14	3	3.2	SPNC0100H	65	75	7	7.5	SPNC0650
11	15	3	3.2	SPNC0110	67	77	7	7.5	SPNC0670
11.2	15.2	3	3.2	SPNC0112	70	80	7	7.5	SPNC0700
12	16	3	3.2	SPNC0120	71	81	7	7.5	SPNC0710
12.5	16.5	3	3.2	SPNC0125	75	85	7	7.5	SPNC0750
14	18	3	3.2	SPNC0140	80	90	7	7.5	SPNC0800
15	19	3	3.2	SPNC0150	85	95	7	7.5	SPNC0850
16	20	3	3.2	SPNC0160	90	100	7	7.5	SPNC0900
18	22	3	3.2	SPNC0180	95	105	7	7.5	SPNC0950
20	24	3	3.2	SPNC0200	100	110	7	7.5	SPNC1000
20	24	3	3.2	SPNC0200	105	115	7	7.5	SPNC1050
21	25	3	3.2	SPNC0210	110	120	7	7.5	SPNC1100
22	26	3	3.2	SPNC0220	115	125	7	7.5	SPNC1150
22	28	4.4	4.7	SPNC0220H	120	130	7	7.5	SPNC1200
22.4	28.4	4.4	4.7	SPNC0224	125	135	7	7.5	SPNC1250
24	30	4.4	4.7	SPNC0240	130	140	7	7.5	SPNC1300
25	31	4.4	4.7	SPNC0250	132	142	7	7.5	SPNC1320
25.5	31.5	4.4	4.7	SPNC0255	135	145	7	7.5	SPNC1350
26	32	4.4	4.7	SPNC0260	140	150	7	7.5	SPNC1400
28	34	4.4	4.7	SPNC0280	145	155	7	7.5	SPNC1450
29	35	4.4	4.7	SPNC0290	150	160	7	7.5	SPNC1500L
29.5	35.5	4.4	4.7	SPNC0295	150	165	10.5	11	SPNC1500
30	36	4.4	4.7	SPNC0300	155	170	10.5	11	SPNC1550
31	37	4.4	4.7	SPNC0310	160	175	10.5	11	SPNC1600
31.5	37.5	4.4	4.7	SPNC0315	165	180	10.5	11	SPNC1650
32	38	4.4	4.7	SPNC0320	170	185	10.5	11	SPNC1700
34	40	4.4	4.7	SPNC0340	175	190	10.5	11	SPNC1750
35	41	4.4	4.7	SPNC0350	180	195	10.5	11	SPNC1800
35.5	41.5	4.4	4.7	SPNC0355	185	200	10.5	11	SPNC1850
36	42	4.4	4.7	SPNC0360	190	205	10.5	11	SPNC1900
38	44	4.4	4.7	SPNC0380	195	210	10.5	11	SPNC1950
39	45	4.4	4.7	SPNC0390	200	215	10.5	11	SPNC2000
40	46	4.4	4.7	SPNC0400	210	225	10.5	11	SPNC2100
41	47	4.4	4.7	SPNC0410	220	235	10.5	11	SPNC2200
42	48	4.4	4.7	SPNC0420	230	245	10.5	11	SPNC2300
44	50	4.4	4.7	SPNC0440	240	255	10.5	11	SPNC2400
45	51	4.4	4.7	SPNC0450	260	275	10.5	11	SPNC2600
46	52	4.4	4.7	SPNC0460	280	295	10.5	11	SPNC2800
48	54	4.4	4.7	SPNC0480	300	315	10.5	11	SPNC3000
48	58	7	7.5	SPNC0480H	320	335	10.5	11	SPNC3200
49	55	4.4	4.7	SPNC0490	340	355	10.5	11	SPNC3400
50	56	4.4	4.7	SPNC0500	375	390	10.5	11	SPNC3750
50	60	7	7.5	SPNC0500H
