Custom Filled PTFE Rod Seals UL

Quantity:

Contact Now

1.Application and properties

Suitable for single-acting sealing of hydraulic reciprocating rod. and has excellent dynamic and static sealing performance at medium and low pressure.

The small section of the seal adds great flexibility to the dimensional design of the cylinder structure

Suitalbe for both rod seals and piston seals.

The work pressure adaptation range is relatively wide. When used independently at low pressure, the pressure resistance can be strengthened by increasing the gear ring. When the pressure is high, it is used together with a buffer seal. The pressure resistance of the sealing system can reach 20MPa. If a buffer seal is added in front of this seal, and a back-up ring is installed behind it.

Closed groove, easy installation of seals.

Strong residual oil retraction ability under reciprocating motion, with minimal residual oil on the piston rod.

2.Standard Material

NBR ,/ FKM

3.Working conditions

Working Conditions

Diameter

Range

Pressure

Range

Temperature

Range°C

Speed

Medium

12～500mm

0～20MPa

-25～100(NBR)，

-10～150(FKM)

0.5m/s

Hydraulic oil

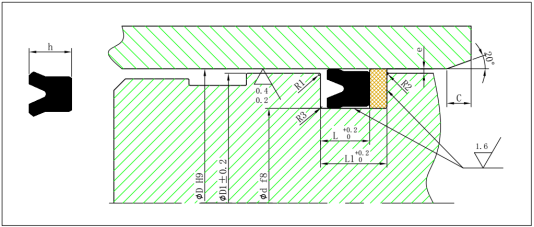

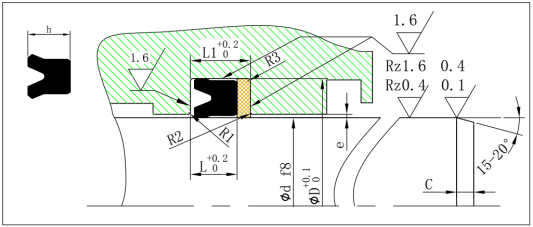

4. Related Dimensions

R1=0.2～0.5; R2=0.1～0.2; R3=0.2～0.3. The specific values are selected according to the section size of the seal. The remaining values are referred to Installation Dimensions table: L stands for the Groove Width without back-up ring and L1 stands for the groove Width with back-up ring.

5. Marking method

Marking it with the dimension of installation groove as below：

For example: the first seal in Installation Dimensions table can be marked as UL12×20×5.7

6. Installation Dimensions

Rod Seals

d	D	h	L	L1	D1	C	d	D	h	L	L1	D1	C
12	20	5	5.7	7.7	19	2	85	100	9	10	13	98	4
14	22	5	5.7	7.7	21	2	90	105	9	10	13	103	4
16	24	5	5.7	7.7	23	2	95	110	9	10	13	108	4
18	26	5	5.7	7.7	25	2	98	112	8.5	9.5	12.5	110	4
20	28	5	5.7	7.7	27	2	100	115	9	10	13	113	4
22	30	5	5.7	7.7	29	2	106	120	8.5	9.5	12.5	118	4
22.4	30	5	5.7	7.7	29	2	110	125	9	10	13	123	4
23.5	31.5	5	5.7	7.7	31.5	2	112	125	8.5	9.5	12.5	123	4
24	32	5	5.7	7.7	31	2	112	125	9	10	13	123	4
25	33	5	5.7	7.7	32	2.5	115	130	8.5	9.5	12.5	128	4
27	35	5	5.7	8.7	34	2.5	118	132	8.5	9.5	12.5	130	4
28	35.5	5	5.7	8.7	34.5	2.5	125	140	9	10	13	138	4
28	36	5	5.7	8.7	35	2.5	130	145	9	10	13	143	4
30	40	6	7	10	39	2.5	132	145	8.5	9.5	12.5	143	4
25	33	5	5.7	7.7	32	2.5	136	150	8.5	9.5	12.5	148	4
27	35	5	5.7	8.7	34	2.5	140	155	9	10	13	153	4
28	35.5	5	5.7	8.7	34.5	2.5	145	160	9	10	13	158	4
28	36	5	5.7	8.7	35	2.5	150	165	9	10	13	163	4
30	40	6	7	10	39	2.5	155	170	9	10	14	168	4
31.5	41.5	6	7	10	40.5	2.5	160	175	9	10	14	173	4
32	42	6	7	10	41	2.5	165	180	9	10	14	178	4
35	45	6	7	10	44	2.5	170	185	9	10	14	183	4
35.5	45	6	7	10	44	2.5	175	190	9	10	14	188	4
35.5	45.5	6	7	10	44.5	2.5	180	200	12	13	17	198	5
36	46	6	7	10	45	2.5	190	210	12	13	17	208	5
40	50	6	7	10	49	2.5	195	215	12	13	17	213	5
45	55	6	7	10	54	2.5	200	220	12	13	17	218	5
45	56	7	8	11	55	2.5	204	224	12	13	17	222	5
50	60	6	7	10	59	2.5	220	240	12	13	17	238	5
53	63	6	7	10	62	2.5	224	244	12	13	17	242	5
55	65	6	7	10	64	2.5	230	250	12	13	17	248	5
56	66	6	7	10	65	2.5	240	260	12	13	17	258	5
58	68	6	7	10	67	2.5	250	270	12	15	17	268	5
60	70	6	7	10	69	2.5	260	280	14	15	19	278	5
60	71	7	8	11	70	2.5	280	300	14	15	19	298	5
63	73	6	7	10	72	2.5	295	315	14	15	19	313	5
65	75	6	7	10	74	2.5	300	320	12	13	17	318	5
67	77	6	7	10	76	2.5	335	355	14	15	19	353	5
70	80	6	7	10	79	2.5	355	375	14	15	19	373	5
71	80	6	7	10	79	2.5	380	400	14	15	19	398	5
75	85	6	7	10	84	2.5	400	420	14	15	19	418	5
80	90	6	10	10	89	2.5	450	470	14	15	20	468	5
85	95	6	10	10	94	4	500	525	17	18	23	523	6.5
